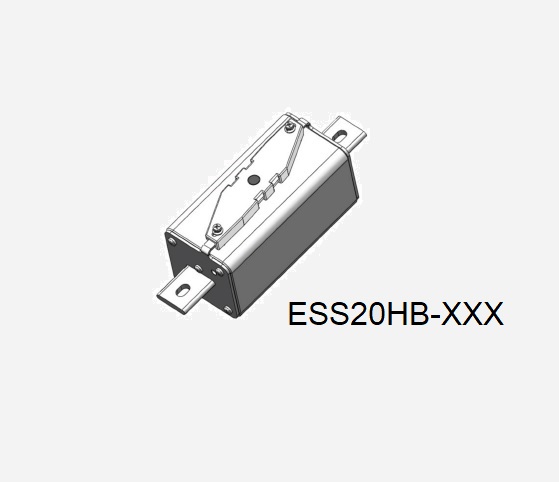

储能熔断器ESS20HB-XXX
产品信息
额定电压：2000VDC
额定电流：350A,400A,450A,500A,550A,630A
断开容量：150KA
时间常数：小于等于3ms
海拔标准：2000-5000米
操作等级符合RoHS/REACH

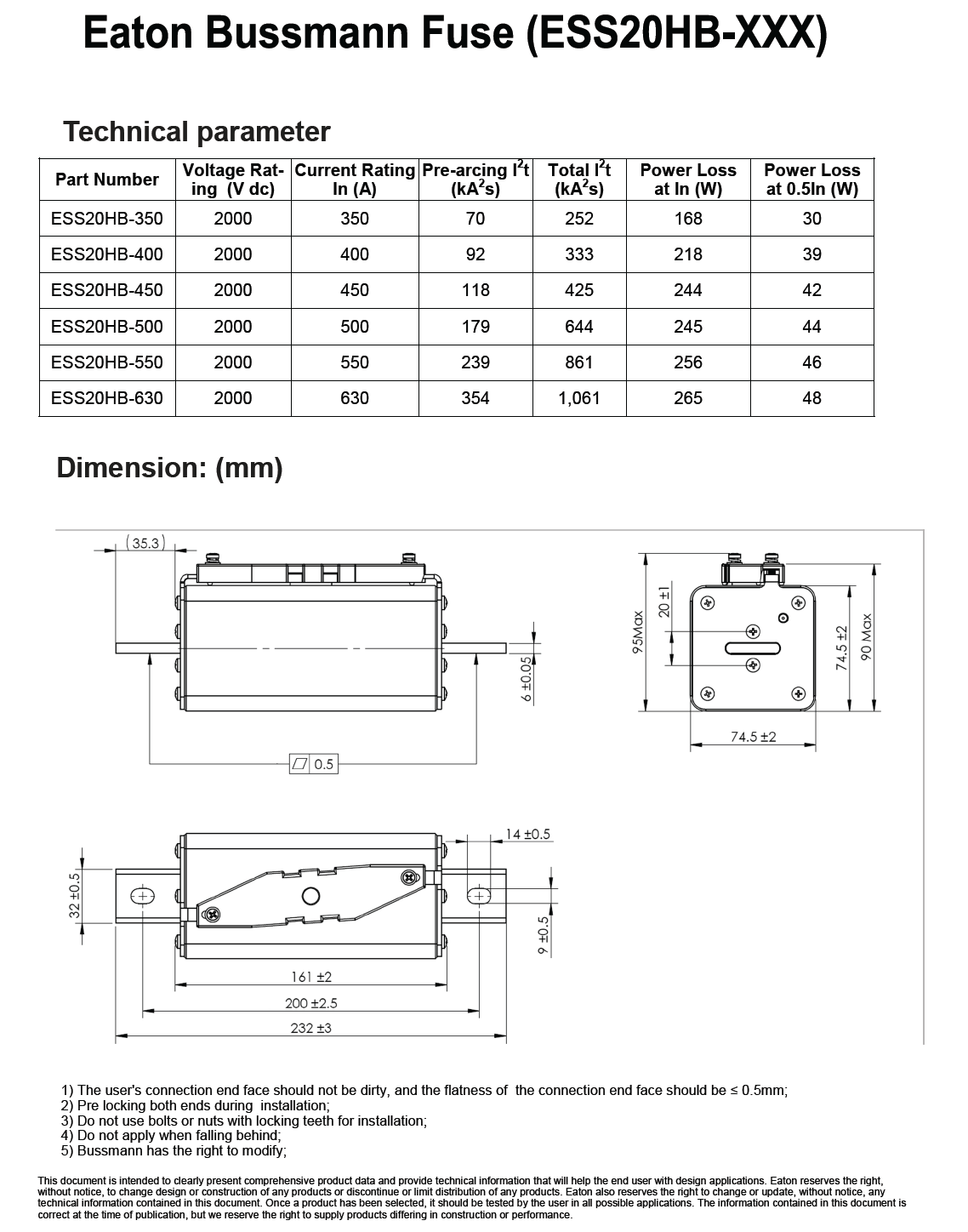

伊顿 Bussmann熔断器 储能选型技术参数：
ESSH20B系列产品参数：
| Part Number | Voltage Rating (V dc) | Current Rating (A) | Pre-arcing I²t (kA²s) | Total I²t (kA²s) | Power Loss at In (W) | Power Loss at 0.5In (W) |
| ESSH20B-350 | 2000 | 350 | 70 | 252 | 168 | 30 |
| ESSH20B-400 | 2000 | 400 | 92 | 333 | 218 | 39 |
| ESSH20B-450 | 2000 | 450 | 118 | 425 | 244 | 42 |
| ESSH20B-500 | 2000 | 500 | 179 | 644 | 245 | 44 |
| ESSH20B-550 | 2000 | 550 | 239 | 861 | 256 | 46 |
| ESSH20B-630 | 2000 | 630 | 354 | 1061 | 265 | 48 |
