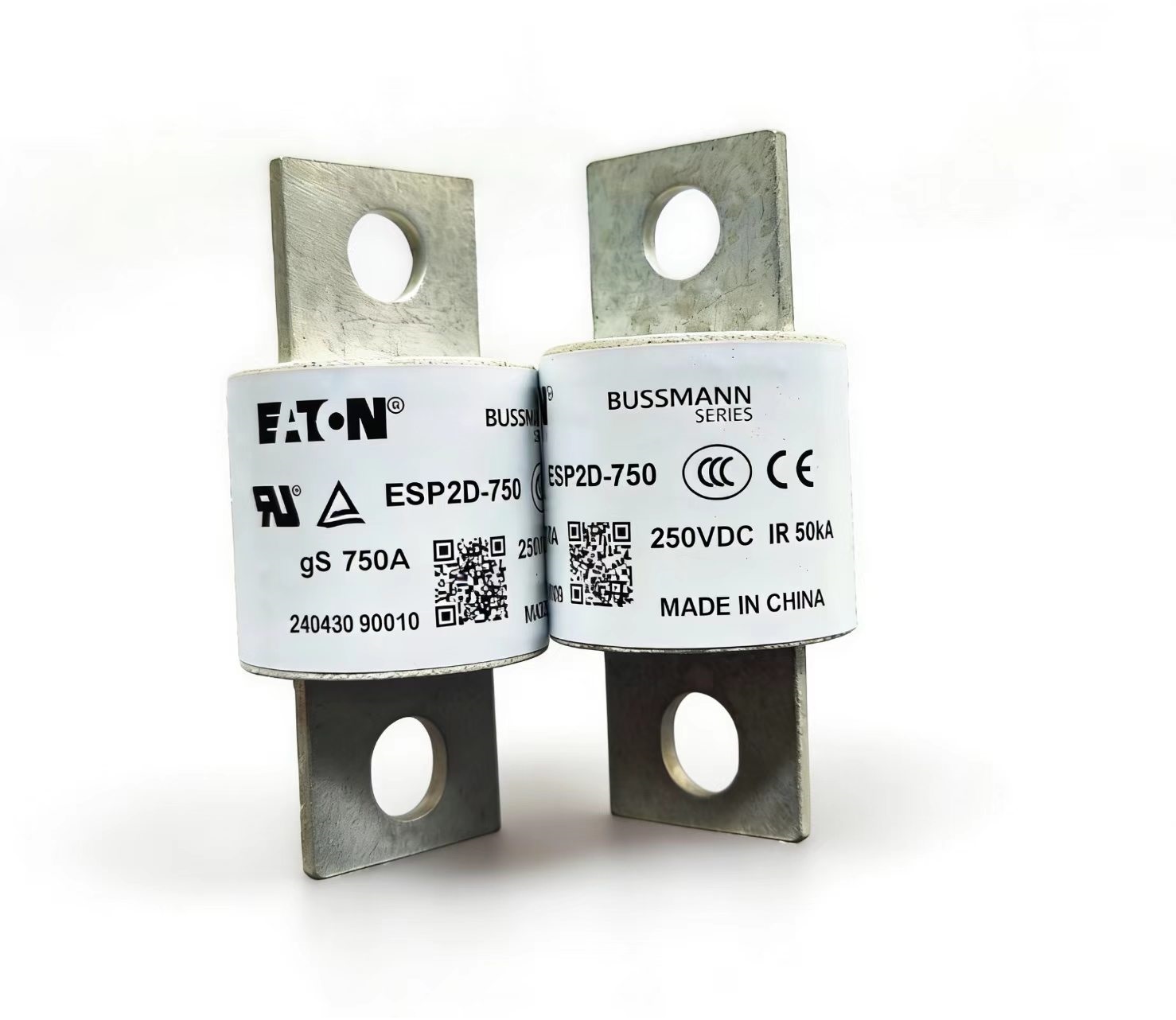

储能熔断器ESP2D系列
基本参数:
额定电压：250Vdc
额定电流：250A - 850A
保护等级：gS,gR
标准：GB13539.4/IEC60269.4(gS), UL248/13 (gR)
分断能力：50kA
伊顿 Bussmann熔断器 储能选型技术参数：

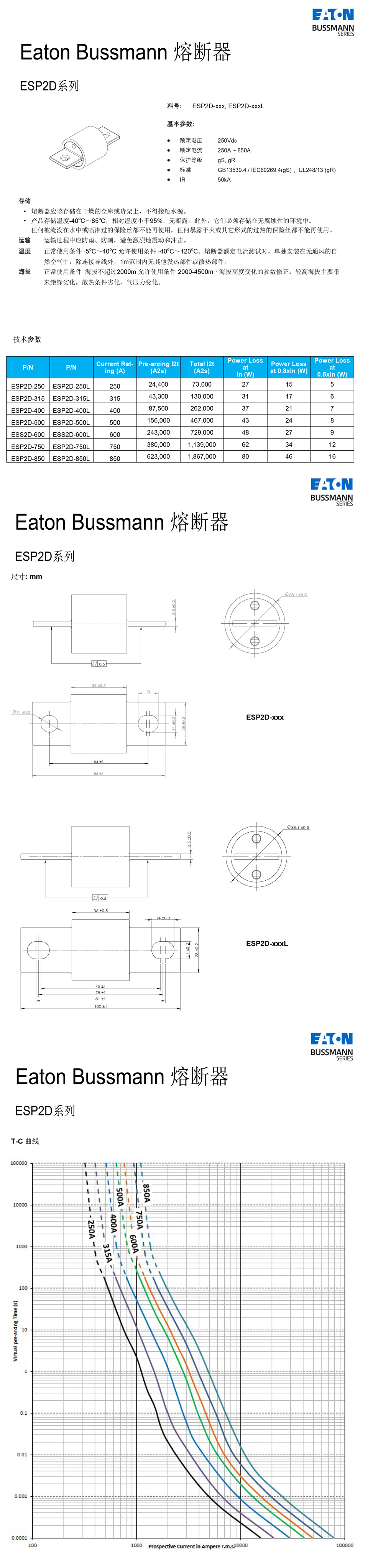

ESP2D系列产品技术参数：
| P/N | P/N | Current Rating (A) | Pre-arcing I²t (A²s) | Total I²t (A²s) | Power Loss at In (W) | Power Loss at 0.8xIn (W) | Power Loss at 0.5xIn (W) |
| ESP2D-250 | ESP2D-250L | 250 | 24,400 | 73,000 | 27 | 15 | 5 |
| ESP2D-315 | ESP2D-315L | 315 | 43,300 | 130,000 | 31 | 17 | 6 |
| ESP2D-400 | ESP2D-400L | 400 | 87,500 | 262,000 | 37 | 21 | 7 |
| ESP2D-500 | ESP2D-500L | 500 | 156,000 | 467,000 | 43 | 24 | 8 |
| ESP2D-600 | ESP2D-600L | 600 | 243,000 | 729,000 | 48 | 27 | 9 |
| ESP2D-750 | ESP2D-750L | 750 | 380,000 | 1,139,000 | 62 | 34 | 12 |
| ESP2D-850 | ESP2D-850L | 850 | 623,000 | 1,867,000 | 80 | 46 | 16 |
