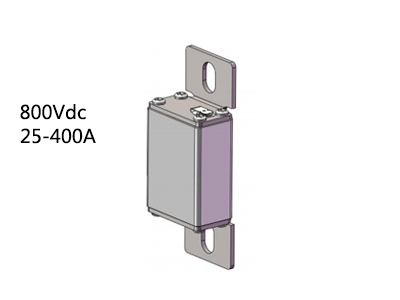

CBX000S-800系列
25CBX000S-800
32CBX000S-800
40CBX000S-800
50CBX000S-800
315CBX000S-800
400CBX000S-800
350CBX000S-800
125CBX000S-800
63CBX000S-800
80CBX000S-800
100CBX000S-800
160CBX000S-800
200CBX000S-800
250CBX000S-800

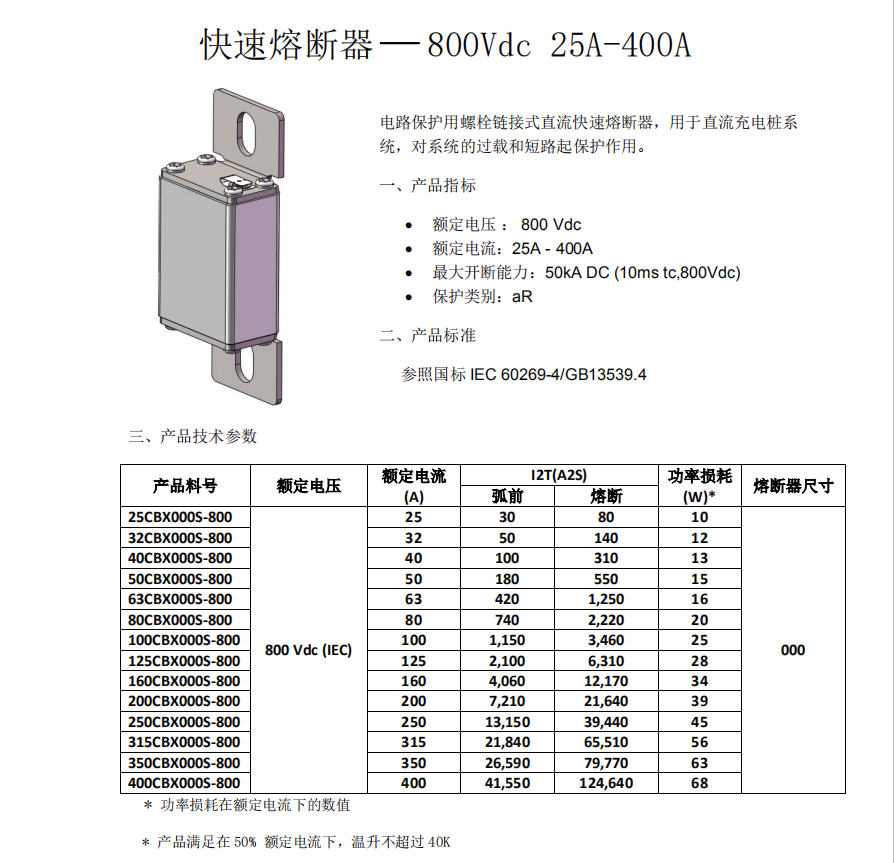

| 额定电压 | 额定电流 | I²t (A²s) | 功率损耗 (W) | 熔断器尺寸 (mm) | |
| 产品料号 | |||||
| 25CBX000S-800 | 800 Vdc (IEC) | 25 | 30 | 80 | 10 |
| 32CBX000S-800 | 800 Vdc (IEC) | 32 | 50 | 140 | 12 |
| 40CBX000S-800 | 800 Vdc (IEC) | 40 | 100 | 310 | 13 |
| 50CBX000S-800 | 800 Vdc (IEC) | 50 | 180 | 550 | 15 |
| 63CBX000S-800 | 800 Vdc (IEC) | 63 | 420 | 1250 | 16 |
| 80CBX000S-800 | 800 Vdc (IEC) | 80 | 740 | 2220 | 20 |
| 100CBX000S-800 | 800 Vdc (IEC) | 100 | 1150 | 3460 | 25 |
| 125CBX000S-800 | 800 Vdc (IEC) | 125 | 2100 | 6310 | 28 |
| 160CBX000S-800 | 800 Vdc (IEC) | 160 | 4060 | 12170 | 34 |
| 200CBX000S-800 | 800 Vdc (IEC) | 200 | 7210 | 21640 | 39 |
| 250CBX000S-800 | 800 Vdc (IEC) | 250 | 13150 | 39440 | 45 |
| 315CBX000S-800 | 800 Vdc (IEC) | 315 | 21840 | 65510 | 56 |
| 350CBX000S-800 | 800 Vdc (IEC) | 350 | 26590 | 79770 | 63 |
| 400CBX000S-800 | 800 Vdc (IEC) | 400 | 41550 | 124640 | 68 |
