CBX01S-1000系列
CBX01S-1000系列
100CBX01S-1000
125CBX01S-1000
160CBX01S-1000
200CBX01S-1000
250CBX01S-1000
315CBX01S-1000
350CBX01S-1000
400CBX01S-1000
50CBX01S-1000
63CBX01S-1000
80CBX01S-1000

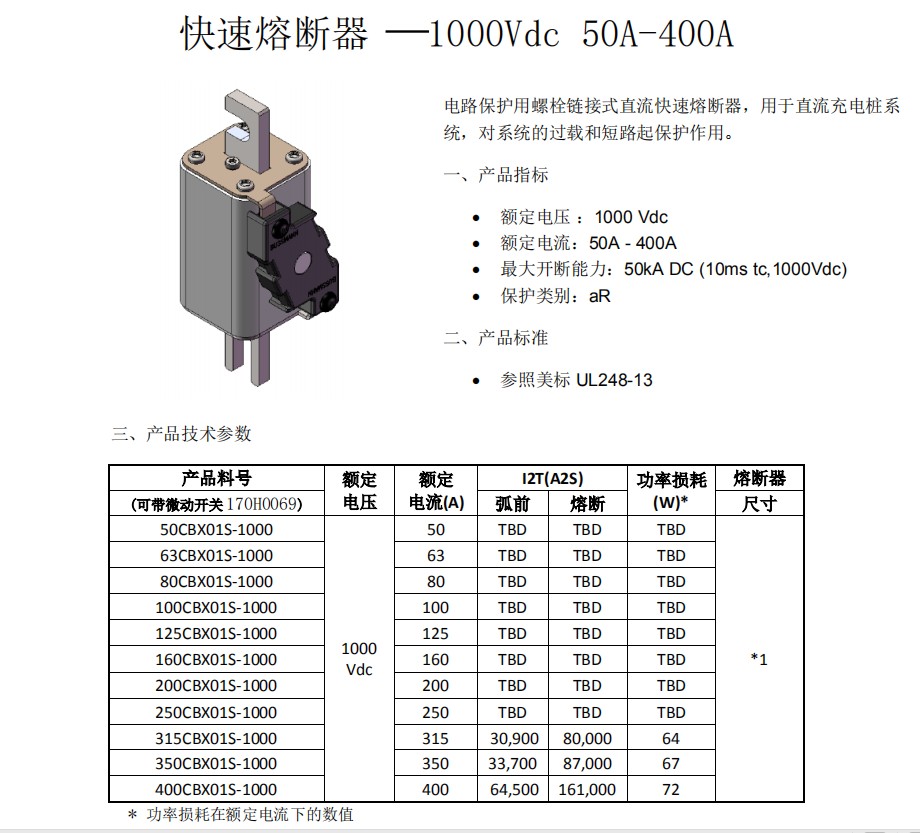

| 产品料号 | 额定电压 | 额定电流 | I²t (A²s) | 功率损耗 (W) | 熔断器尺寸 (mm) | |
| 弧前 | 熔断 | |||||
| 50CBX01S-1000 | 1000VDC | 50 | TBD | TBD | TBD | 1* |
| 63CBX01S-1000 | 1000VDC | 63 | TBD | TBD | TBD | |
| 80CBX01S-1000 | 1000VDC | 80 | TBD | TBD | TBD | |
| 100CBX01S-1000 | 1000VDC | 100 | TBD | TBD | TBD | |
| 125CBX01S-1000 | 1000VDC | 125 | TBD | TBD | TBD | |
| 160CBX01S-1000 | 1000VDC | 160 | TBD | TBD | TBD | |
| 200CBX01S-1000 | 1000VDC | 200 | TBD | TBD | TBD | |
| 250CBX01S-1000 | 1000VDC | 250 | TBD | TBD | TBD | |
| 315CBX01S-1000 | 1000VDC | 31 | 30,900 | 80,000 | 64 | |
| 350CBX01S-1000 | 1000VDC | 350 | 33,700 | 87,000 | 67 | |
| 400CBX01S-1000 | 1000VDC | 400 | 64,500 | 161,000 | 72 | |
